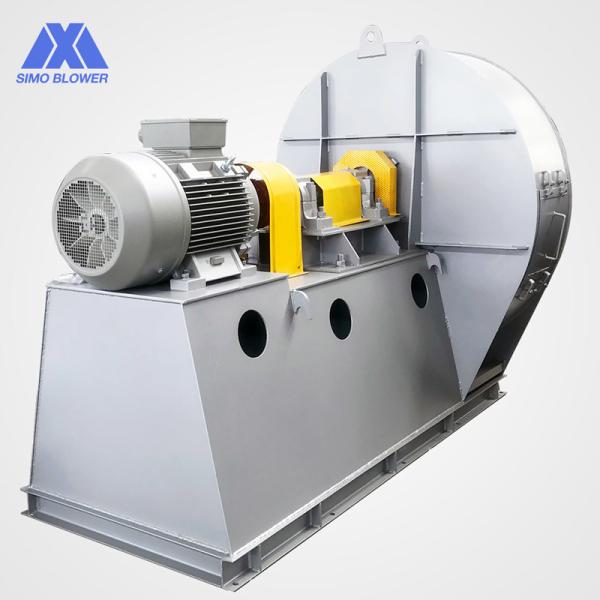

Q345 Forward Explosion Proof Blower Ventilation Backward
Introduction
The 6-06 series boiler fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.
In the use of common base, the installation is very simple and requires little support from a professional technician.
Detail introduction
1. The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.
2. The parts are tightly matched and the sealing performance is good, ensuring that the output pressure will not decrease.
3. The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 6-06 | 8D | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9D | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 |
| 10D | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 |
| 11D | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 |
| 12D | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 |
| 13D | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 |
| 14D | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 |
| 15D | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 |
| 16D | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 |
| 17D | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 |
| 18D | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 |
| 19D | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 |
| 20D | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 |
| 21D | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 |
| 22D | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 |
| 23.5D | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 |
| 25D | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 |
| 26.5D | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 |
| 28D | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 |
| 29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
Product Features
1. In the use of common base, the installation is very simple and requires little support from a professional technician.
2. The range of high-efficiency working conditions is wide, the machine numbers are arranged intensively, and it is easy to select high-efficiency working conditions.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
