Heavy Duty Long Lifetime Cement Fan Anti Abrasive Forward
Introduction

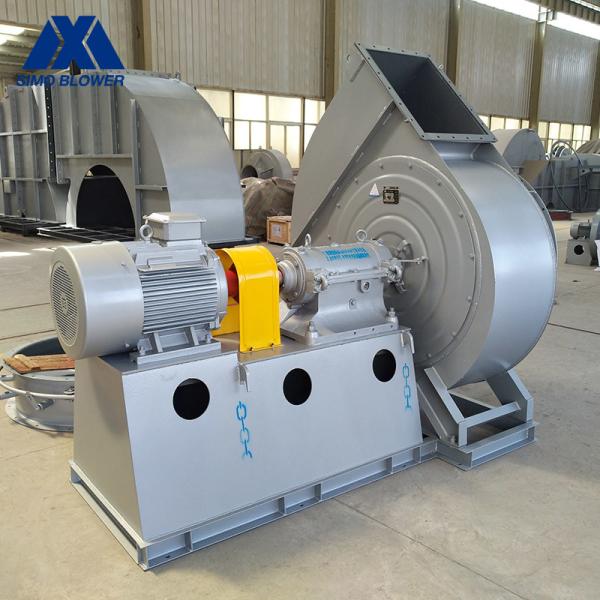

The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.
Motor is carefully matched to the fan load, protection level IP54, and insulation class F. Motor ball bearings are used and lubricated. Motor and drives are isolated from the air stream to avoid grease or dirt accumulation.
Detail introduction
Fan shaft shall be heat treated through soaking furnace to the hardness level between HB250-280, and the maximum load should be 35% higher than the maximum fan operational speed. The shaft shall have shaft cover. It shall use 40 Cr steel when it is operated under 250.C and 35 CrMo shall be used when operating between 251.C - 450 .C. Cylindrical bearing box shall be used to support the fan shaft.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Product Features
The service life span shall be longer than L-10: 80,000 hours at the maximum operating speed. N32-N46 lubricant shall be used inside. The bearing box shall equipped with water cooling system when operating between 61.C - 250.C. Water can be added depending on the actual operating environment. Water delivering system shall be added when operating above 250.C. The rate of evaporation shall be considered base on the operating temperature between 0.3 – 1 m3h.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
