Q345 Medium Pressure Antiwear Drying Centrifugal Flow Fan
Introduction
1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
2. The fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 5-12 | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
FAQ
1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.
2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.
3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.
4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.
5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.
6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
Product Tags:
|
|

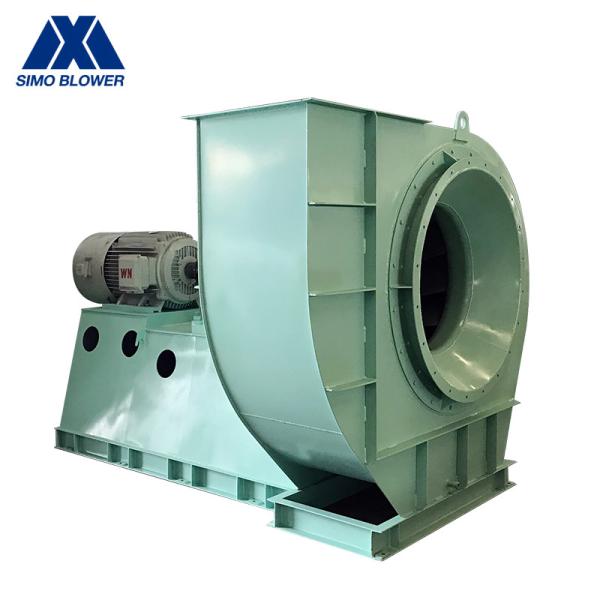

Q345 Medium Pressure Antiwear Drying Centrifugal Flow Fan Images
|
