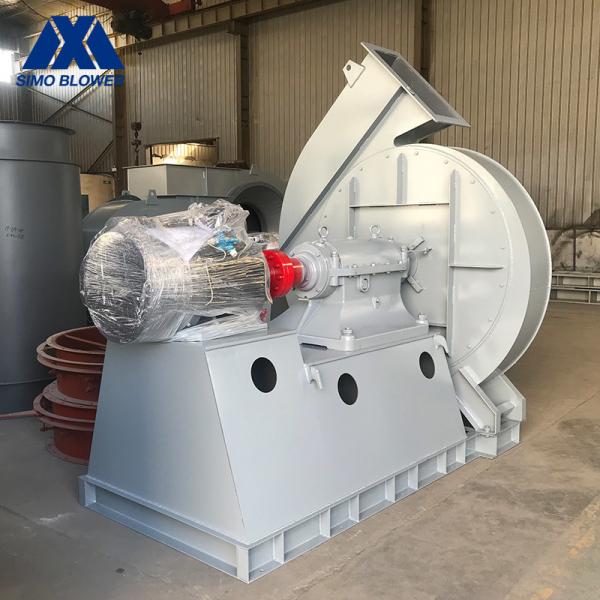

Single Suction High Air Flow Backward Anticorrosion Explosion Proof Blower
Introduction Of Centrifugal Fan
The 7-08 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
It belongs to small flow and medium pressure series.
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 7-08 | 5D | 3030 | 2982 ~ 3456 | 4486 ~ 8971 | 11 ~ 15 |
| 5.6D | 2360 | 2623～2264 | 4909～9817 | 11 |
| 7.1D | 1830 ~ 2450 | 2188 ~ 3862 | 7757～20771 | 15 ~ 30 |
| 8D | 1910 | 3517～3034 | 11582～23164 | 30 |
| 9D | 1570 | 3002～2591 | 13555～27111 | 30 |
| 10D | 1470 ~ 1650 | 2806 ~ 4109 | 17410 ～ 36478 | 45 ~ 55 |
Product Features
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
