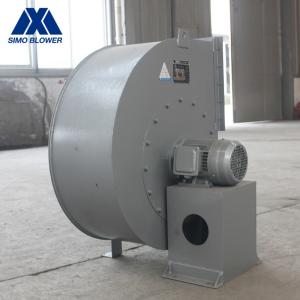

Q345 Coupling Driving Backward Curved High Temperature Induced Draft Fan
Introduction:
The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
Product features:
1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
Technical specifications:
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 4-09 | 2.8A | 2900 | 994～606 | 1131～2356 | 1.5 |
| 3.2A | 1450 ~ 2900 | 198 ~1300 | 844 ～ 3517 | 1.1 ~ 2.2 |
| 3.6A | 1450 ~ 2900 | 247 ~ 1578 | 1332 ～ 5268 | 1.1 ~ 3 |
| 4A | 1450 ~ 2900 | 329 ~ 2014 | 2006 ～ 7419 | 1.1 ~ 5.5 |
| 4.5A | 1450 ~ 2900 | 416 ~ 2554 | 2856 ～ 10562 | 1.1 ~ 7.5 |
| 5A | 1450 ~ 2900 | 502 ~ 3187 | 3864 ～15456 | 2.2 ~ 15 |
| 6A | 960 ~ 1450 | 317 ~ 1139 | 4420 ～ 13353 | 1.5 ~ 4 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
