High Volume Efficient Energy-Saving Backward Curved Steam Boiler Blower
Introduction
The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 4-09 | 6D | 960 ~ 1450 | 317 ~ 1139 | 4420～13353 | 1.5 ~ 4 |
| 8D | 730 ~ 1450 | 376 ~ 2032 | 7968～29344 | 3 ~ 18.5 |
| 10D | 730 ~ 1450 | 637 ~ 3202 | 20360 ~ 56605 | 7.5 ~ 55 |
| 12D | 730 ~ 960 | 919 ~ 2013 | 35182～64759 | 18.5 ~ 45 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
Product Tags:
|
|

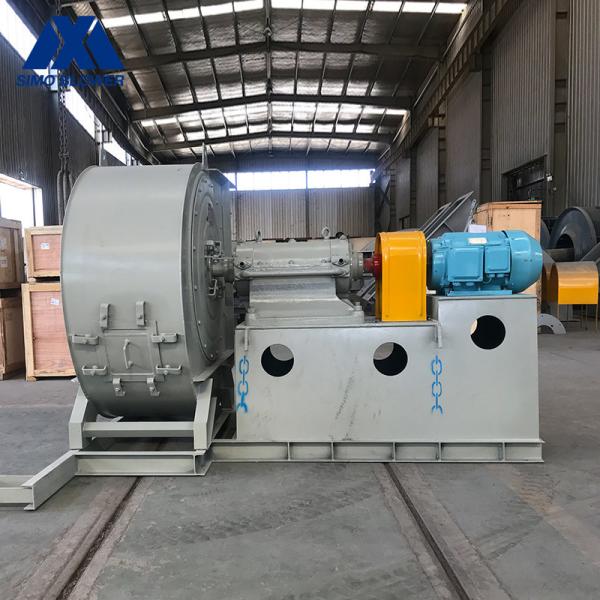

High Volume Efficient Steam Backward Curved Boiler Blower Images
|
