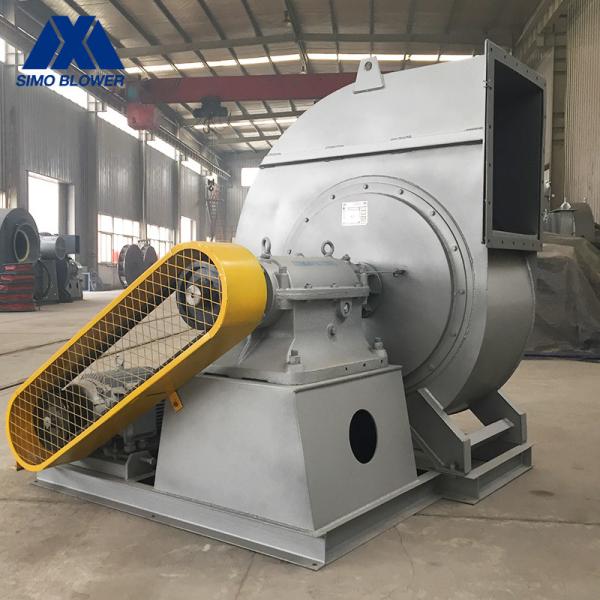

Explosion Proofing 2000 RPM Stokerfeed Boiler Air Exhaust Blower Fan
Introduction
The manufacturer has a complete range of products and reasonable prices. The fan has large air volume and sufficient pressure. After many performance tests of vibration, air volume, air pressure, dynamic balance and other performance tests, it will leave the factory. And we provide high-definition pictures, installation and after-sales service. You can choose with confidence.
Centrifugal fans are divided into different types of fan blades: forward centrifugal fans and backward centrifugal fans.
Forward fan: generally a blower, the impeller hub is parallel to the edge of the impeller, and the exit angle of the impeller is greater than 90 degrees.
Backward inclined fan: Generally, it is an induced draft fan. The impeller hub and the impeller are not parallel, and the exit angle of the impeller is less than 90 degrees.
SIMO Blower has a professional technical research and development team, using computer-aided design, can provide customers with various ventilation needs.
Technical data
| PRODUCT PARAMETERS |
| Blower Fan Application | Temperature | Normal temperature air, Hot air |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials |
| Blower Fan Performance | Impeller diameter | 2000~3000 | mm |
| Speed of mainshaft | 680~960 | rpm |
| Pressure range | 5101~20135 | Pa |
| Flow range | 133923~681855 | m3/h |
| Blower Fan Structure | Blade | Backward |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. |
| Drivetrain | Direct, Coupling, V-belt | Can assign |
| Lubrication | Oil bath lubrication |
| Bearing cooling | Air cooling, Water cooling, Oil cooling |
| Blower Fan System
configuration | Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… | Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... |
| Casing, Air inlet cone, Air inlet damper | Q235, Q345, SS304, SS316, HG785, DB685... |
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... |
| Bearing | FAG, SKF, NSK, ZWZ… |
| Blower Fan Optional
components | System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc. |
Advantages and Features
The 4-09 series large-flow centrifugal fan is suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
