Steam Boiler Large Centrifugal Blower With Forward Blade CE ISO

  • 1
  • 2
  • 3

Brand Name : SIMO

Model Number : SIMO Blower 9-11

Certification : CE, ISO9001:2008,TUV

Place of Origin : Henan China

MOQ : 1 Set

Price : 300-5000 USD

Payment Terms : T/T, L/C, Payment Term Is Negotiable

Supply Ability : 500 Sets Per Month

Delivery Time : 15-35 Days

Packaging Details : Export Wooden Case Packing, Steel pallet Packing

Application : Industrial Ventilation

Feature : High Performance

Color : Customer's Requirement

Blade : Forward / Backward/Backward Curved

Electric Current Type : AC

Medium : Clean air/Dusty air

Contact Now

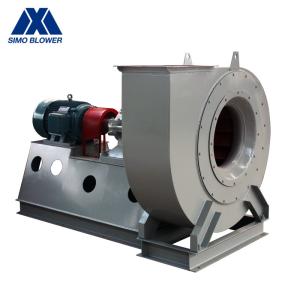

Large Capacity Steam Boiler Explosion Proof Centrifugal Blower Fan

Introduction

The Large Capacity Steam Boiler Explosion Proof Centrifugal Blower Fan has a large flow rate and moderate pressure.

This fan is designed for the purpose of using industrial boiler to work in the high-efficiency area and achieve the energy-saving target.

The fan is suitable for equipped with economizer (heater) and smoke and dust removal device.

It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.

In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.

Technical data

series model

Centrifugal Blower

Rotation Speed
(r/min)

Centrifugal Blower

Total Pressure
(Pa)

Centrifugal Blower

Air Capacity
(m³/h)

 Power
(kW)

9-11

Centrifugal Blower

 4D 2900 2285～2452 3297～6594 5.5～7.5
4.5D 2900 2893～3060 4695～9389 11～15
5D 2900 3570～3854 6440～12880 15～22
5.6D 2900 4482～4805 9048～18095 30～45
6.3D 1450 1422～1500 6441～12882 7.5～11
7.1D 1450 1804～1942 9220～18439 11～18.5
8D 1450 2285～2462 13189～26378 18.5～30
9D 1450 2893～3099 18779～37558 37～55
10D 1450 3570～3854 25760～42933 55～90
11.2D 960～1450 1961～4835 23961～72381 30～160
12.5D 730～960 1412～2638 25329～66620 22～90
14D 730～960 1775～3305 35586～93596 45～160
16D 730～960 2314～4295 53120～139712 75～280


Application

Explosion Proof Centrifugal Blower Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.

Steam Boiler Large Centrifugal Blower With Forward Blade CE ISO

Steam Boiler Large Centrifugal Blower With Forward Blade CE ISO
