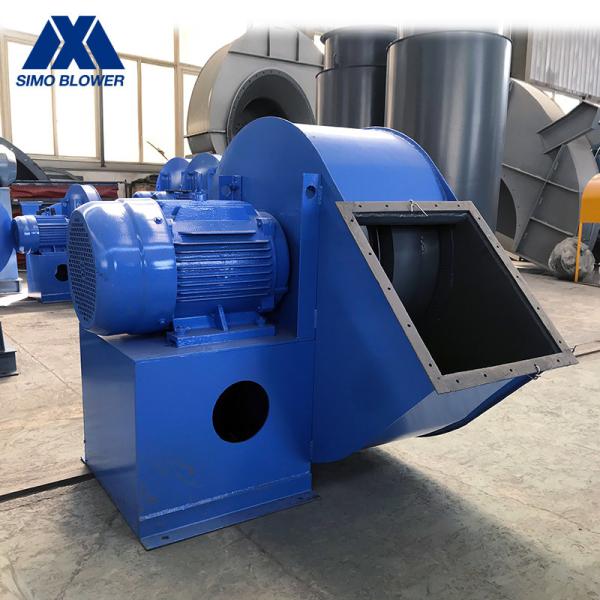

Stainless Steel Smoke Exhaust Explosion Proof Centrifugal Blower Fan
Introduction
The Stainless Steel Smoke Exhaust Explosion Proof Centrifugal Blower Fan is the earliest used fan in China, and it is also the most commonly used fan.
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
Technical data
| series | model | Centrifugal Blower Rotation Speed
(r/min) | Centrifugal Blower Total Pressure
(Pa) | Centrifugal BlowerAir Capacity
(m³/h) | Power
(kW) |
| 4-09 Centrifugal Blower | 2.8A | 2900 | 994～606 | 1131～2356 | 1.5 |
| 3.2A | 1450 ~ 2900 | 198 ~1300 | 844 ～ 3517 | 1.1 ~ 2.2 |
| 3.6A | 1450 ~ 2900 | 247 ~ 1578 | 1332 ～ 5268 | 1.1 ~ 3 |
| 4A | 1450 ~ 2900 | 329 ~ 2014 | 2006 ～ 7419 | 1.1 ~ 5.5 |
| 4.5A | 1450 ~ 2900 | 416 ~ 2554 | 2856 ～ 10562 | 1.1 ~ 7.5 |
| 5A | 1450 ~ 2900 | 502 ~ 3187 | 3864 ～15456 | 2.2 ~ 15 |
| 6A | 960 ~ 1450 | 317 ~ 1139 | 4420 ～ 13353 | 1.5 ~ 4 |
Application
Explosion Proof Centrifugal Blower Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
