Anti Abrasive Industrial Boiler Flue Gas Denitrification Centrifugal Boiler Fan
Introduction

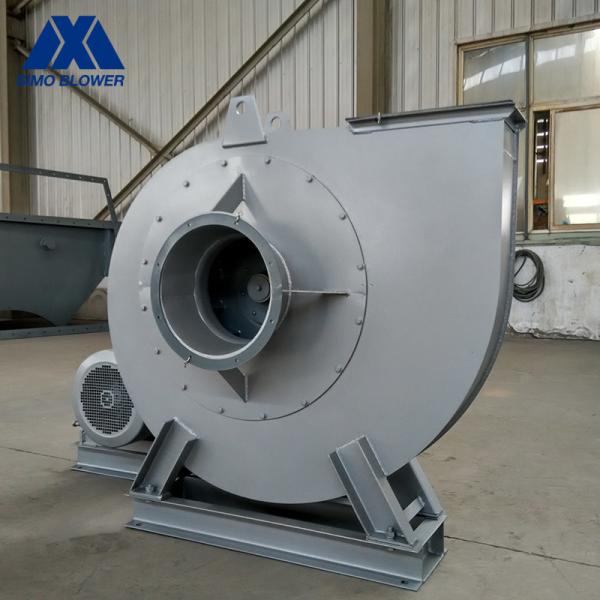

The Anti Abrasive Industrial Boiler Flue Gas Denitrification Centrifugal Boiler Fan a special dust-discharging fan designed jointly by the fan industry.
It has the characteristics of not easy dust accumulation and wear resistant, high efficiency and low noise. This series is a range of centrifugal fans with a wide range of performance.
It is suitable for discharging gas containing dust, wood chips and finely divided fibers (If it contains hard particles, a dust removal device must be installed in front of the fan.), it can also be used as a general ventilator for ventilation.It can output higher outlet pressure and provide more gas flow at the same time, low noise.The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
Technical data
| series | model | Centrifugal Boiler Fan Rotation Speed
(r/min) | Centrifugal Boiler Fan Total Pressure
(Pa) | Centrifugal Boiler Fan Air Capacity
(m³/h) | Power
(kW) |
| 6-03 Centrifugal Boiler Fan | 3.15C | 1600～3150 | 354～1880 | 755～3323 | 0.75～3 |
| 4C | 1250～2500 | 345～1933 | 1184～5495 | 0.75～4 |
| 5C | 1400～2000 | 675～1953 | 2487～8623 | 2.2～7.5 |
| 6.3C | 1000～1600 | 344～1985 | 1776～13799 | 1.1～11 |
| 8C | 1120～1400 | 547～1517 | 3554～12074 | 3～7.5 |
| 10C | 800～1250 | 350～1953 | 2843～22075 | 1.5～15 |
| 12.5C | 400～1000 | 350～2043 | 7402～56902 | 2.2～22 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
