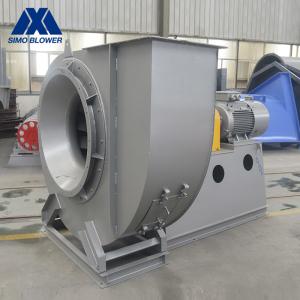

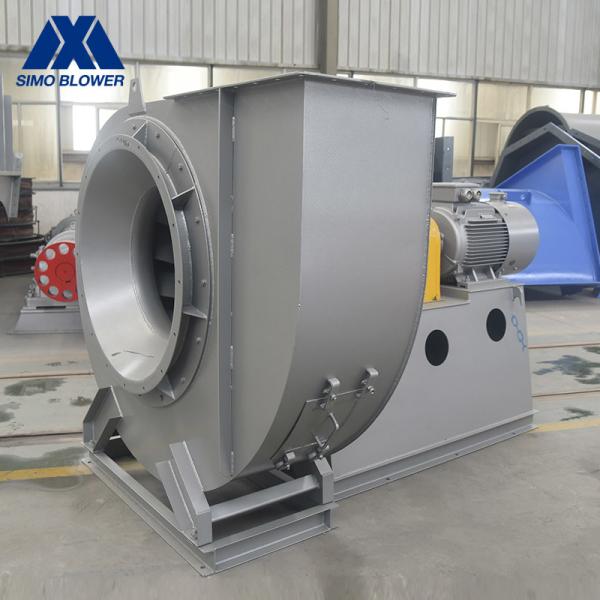

High Pressure High Temperature Materials Cooling Dust Collector Fan
Introduction
Mainly to meet the dust emission requirements of the electric arc furnace exhaust gas purification equipment, improve the workshop environment, to ensure that the dust concentration in the electric furnace working area meets the “sanitary standards for industrial enterprises”, and can also be used in various occasions with the same functional requirements.
The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device. Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil. The bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.
Technical data
| series | model | Dust Collector Fan Rotation Speed
(r/min) | Dust Collector Fan Total Pressure
(Pa) | Dust Collector Fan Air Capacity
(m³/h) | Power
(kW) |
| 5-12 Dust Collector Fan | 4D | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5D | 2240～3150 | 964～2819 | 3772～9851 | 4～11 |
| 6.3D | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 |
| 8D | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 |
| 10D | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 |
| 12.5D | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
